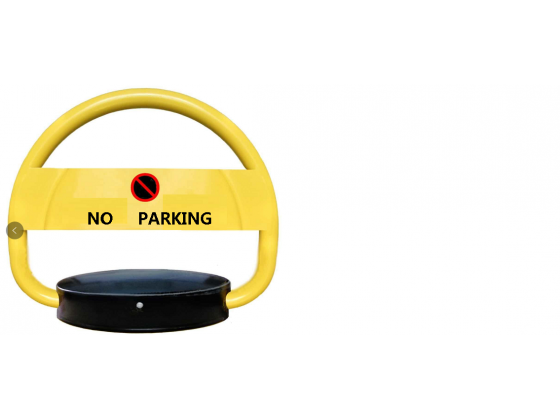

PL-01 PARKING LOCK
1、FUNCTIONS AND FEATURES
|
MODEL:PL-01 |
|
Technical Specifications |
|
|
|
1. Power supply voltage: DC6V. Battery: 6V /12AH. 2.. Control the rise or fall with the dry point of the parking system. 3. Running time of the stop arm: no more than 5s. 4, using the environment temperature: - 10-70 ℃ 5. Ambient humidity: 95%. 6. Main engine size: 340mm*75mm. 7. Vehicle width: 460mm. 8. Height of the arm: 410mm. 9. Weight: about 8.5KG.(Including battery) 10. Package size: 480mm*460mm*100mm. 11. Waterproof performance: IP34. 12. Anti-collision ability: it has this function. 13. Overload protection: this feature is available. 14. Service life: 10 years under normal conditions. 15 The arm will automatically rise when the car leaves. 16 Use car detection module, sensor. |
2、Product features
l Low - speed DC motor drive, low noise.
l The built-in anti-collision reset device will not damage the car and affect the normal use of the parking lock even if the collision is not careful.
l Using worm gear and worm drive.The load is light, thus increasing the service life of the battery.
l It has the function of automatic pullback of rising encounter resistance, no damage to the car, and avoid the mandatory roof collision car chassis.
l It has the automatic stop function of the decrease encounter resistance and avoids the interlock of the parking lock.
l It is made of high quality aluminum alloy for the lock shell, bottom plate and gland. It is beautiful and never rusted.
l The pressure design can withstand under 3 Tons of car rolling, not deformation.
l High sensitive micro switch, safe and reliable, with a lifetime of 1 million.
l It can be waterproof and soaked for no more than 5cm.
l Useing the parking system to control it rise up and falling,when the car leaves, will automatically rise up.
3. Random accessories.
1. 1 charger 2. 2 Expansion screws; 3. 3 Product warranty card..
